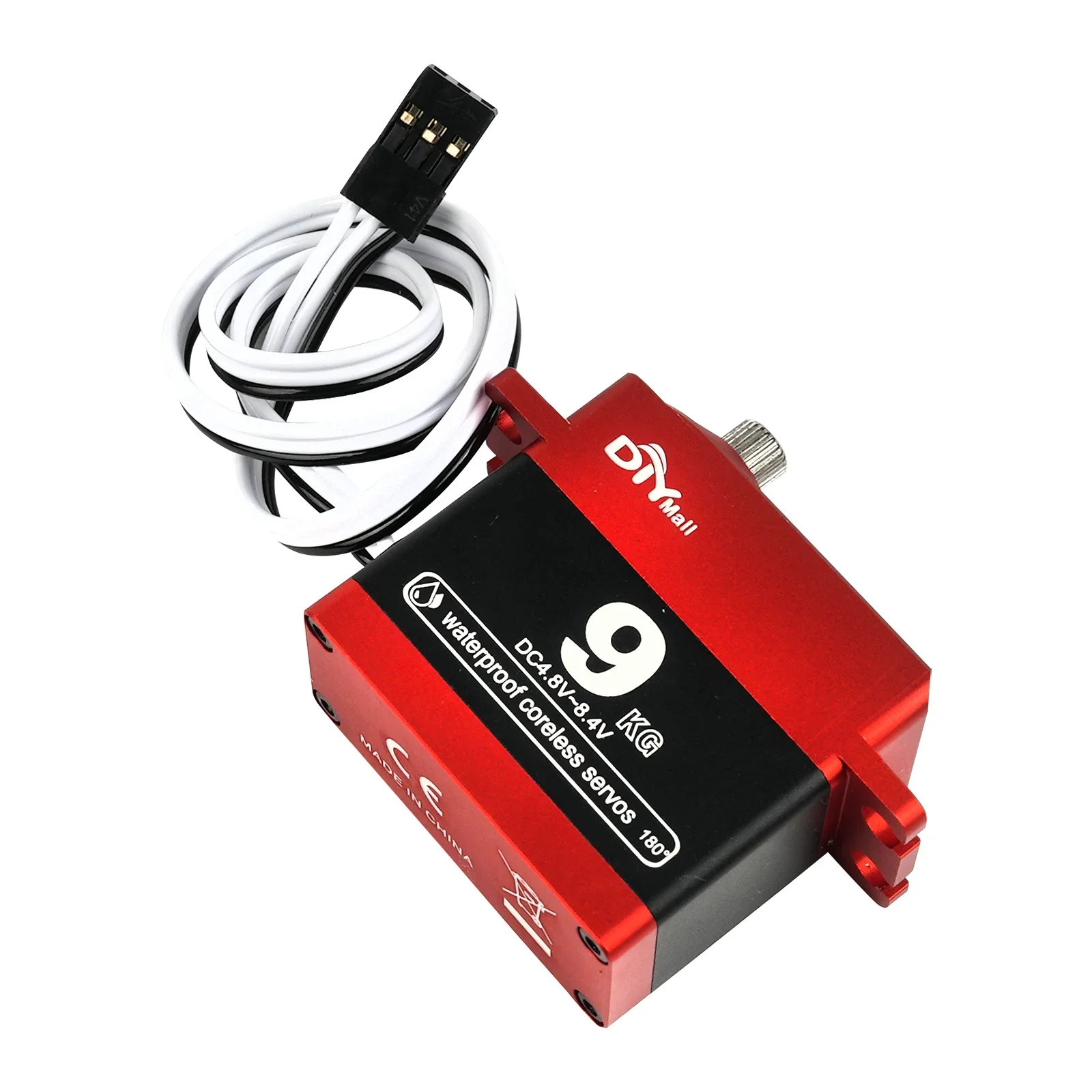

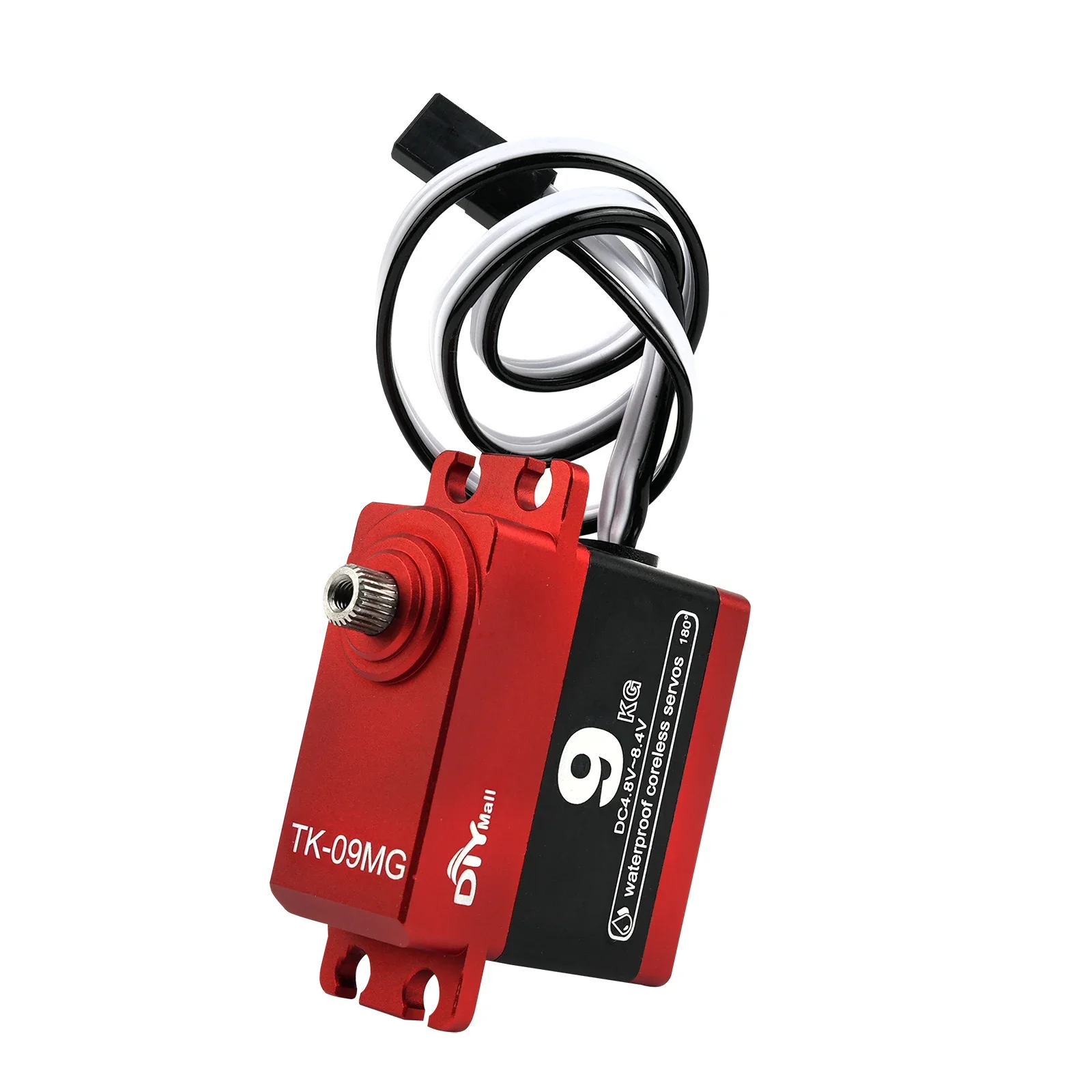

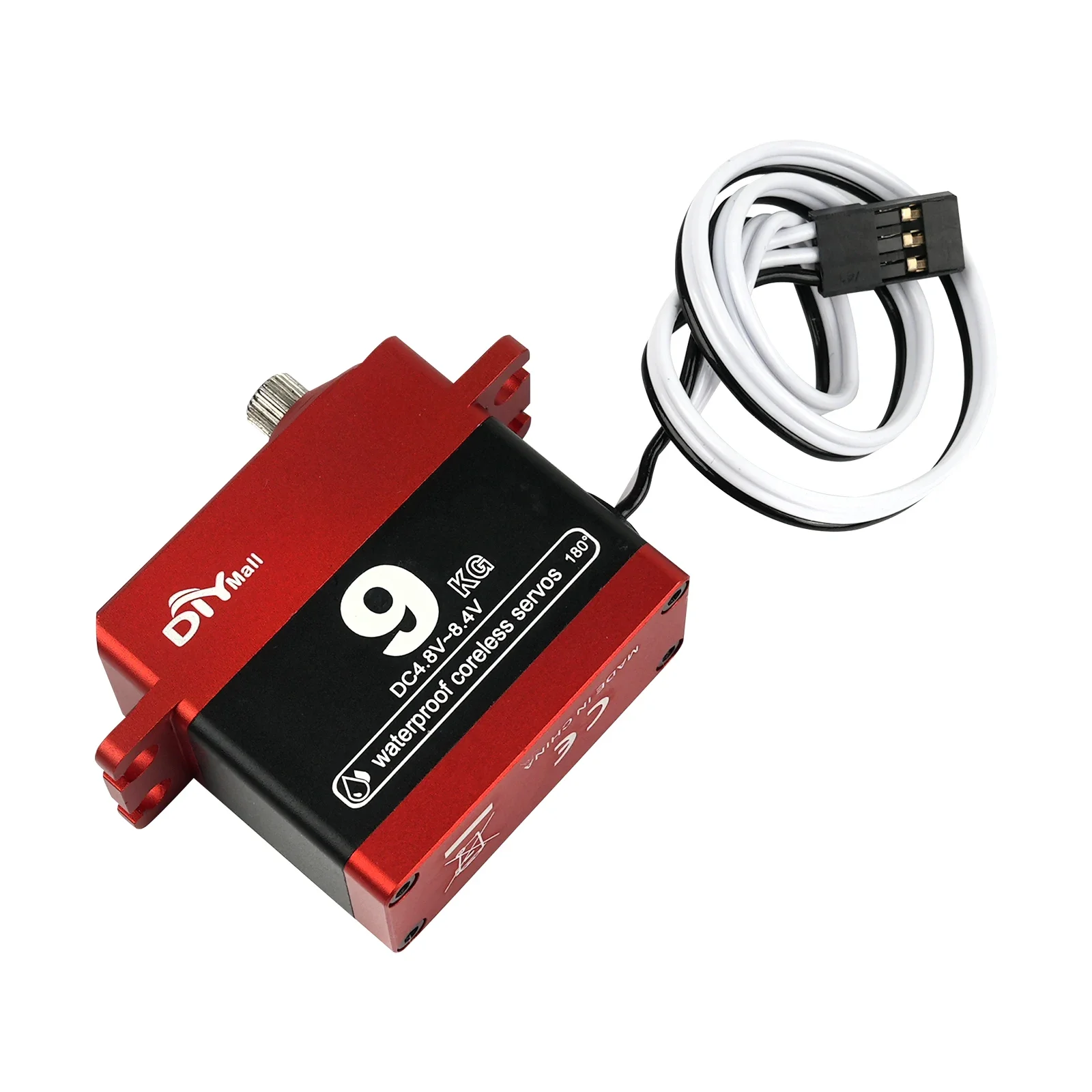

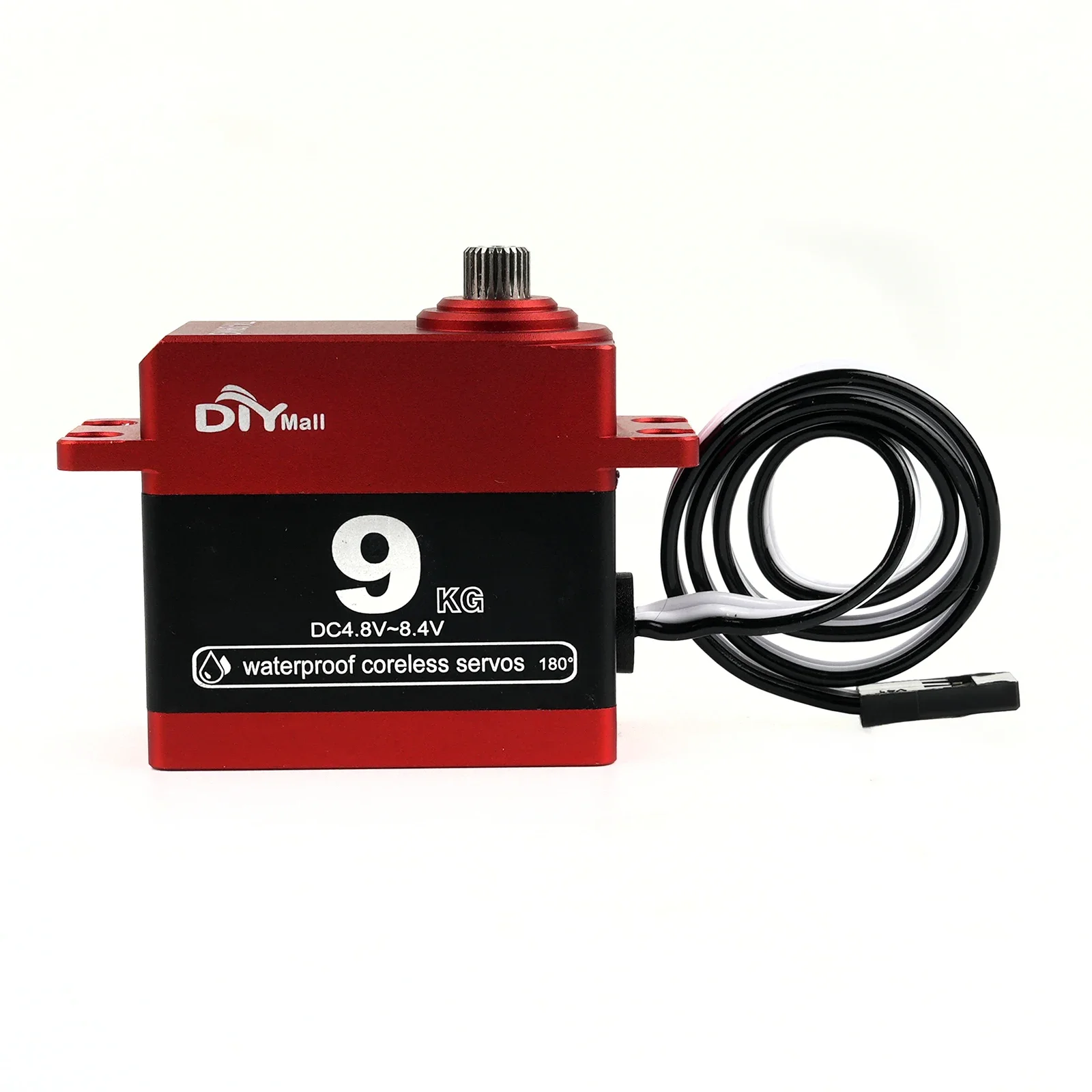

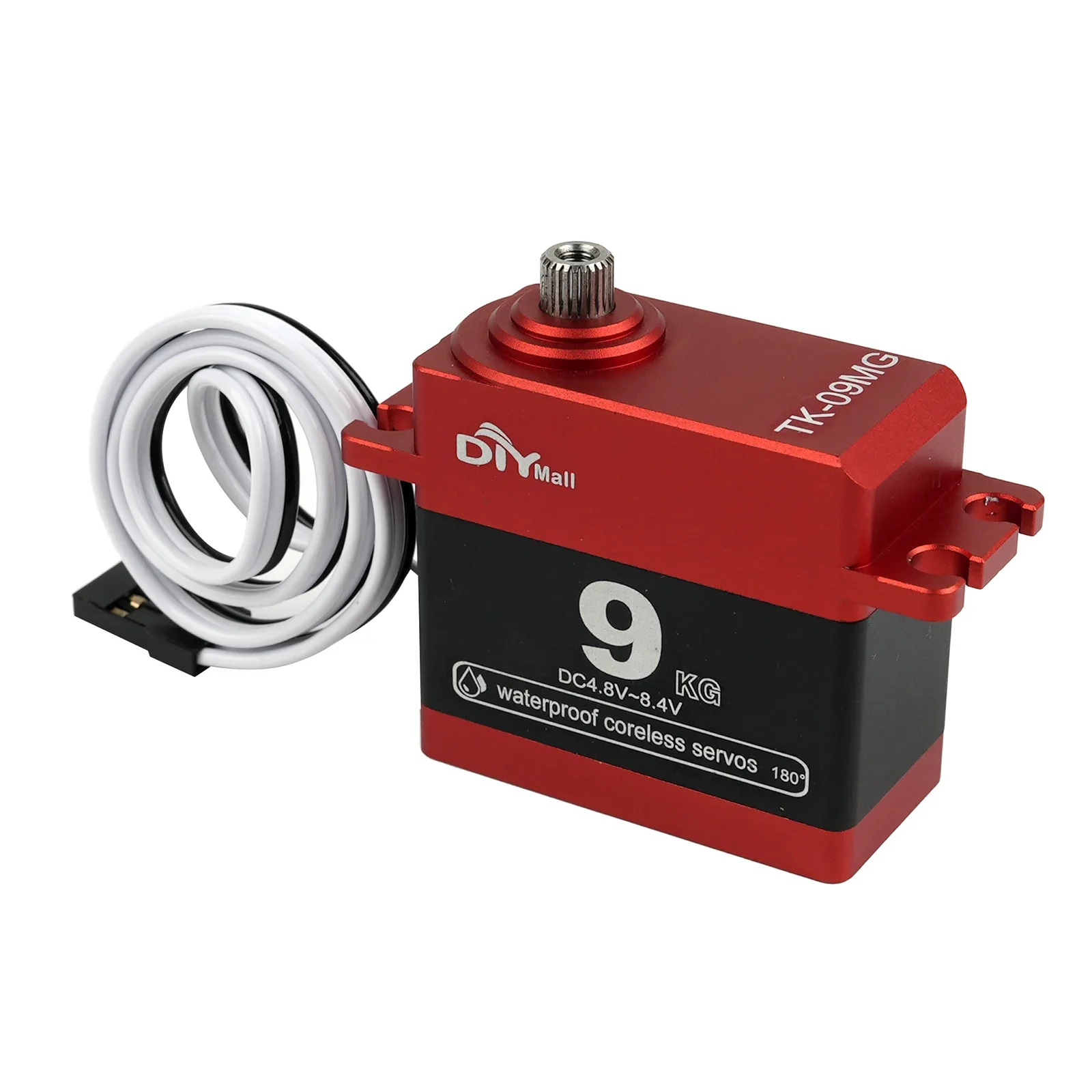

TK-09MG 9KG Digital Servo 180/270/360° 4.8-8.4V Metal Gear Waterproof Coreless Motor for 1/10 1/12 RC Cars Crawler Fixed-wing
Crafted with love and care at our own factory
Regular price
$41.00
Sale price
$41.00
Regular price
Unit price
Sale
-
Estimated Delivery:Feb 27 - Mar 03
-
Free Shipping & Returns: On all orders over -
9KG Digital RC Servo Motor 180/270/360° Metal Gear Waterproof Coreless Servos for 1/10 1/12 RC Cars Crawler Fixed-wing TK-09MG
Products Name:TK-09MG
1.Apply Environmental Conditon
Item:Specifcation
Storage Temperature Range:-30°C～80°C
Operating Temperature Range:-25°C～70°C
2.Standard Test Environment
Item:Specifcation
Temperature Range -25°C～70°C
Humidity Range:65%±10%
3. Mechanical Specification
Item:Specifcation
Size:40.0*20.0*37.8mm

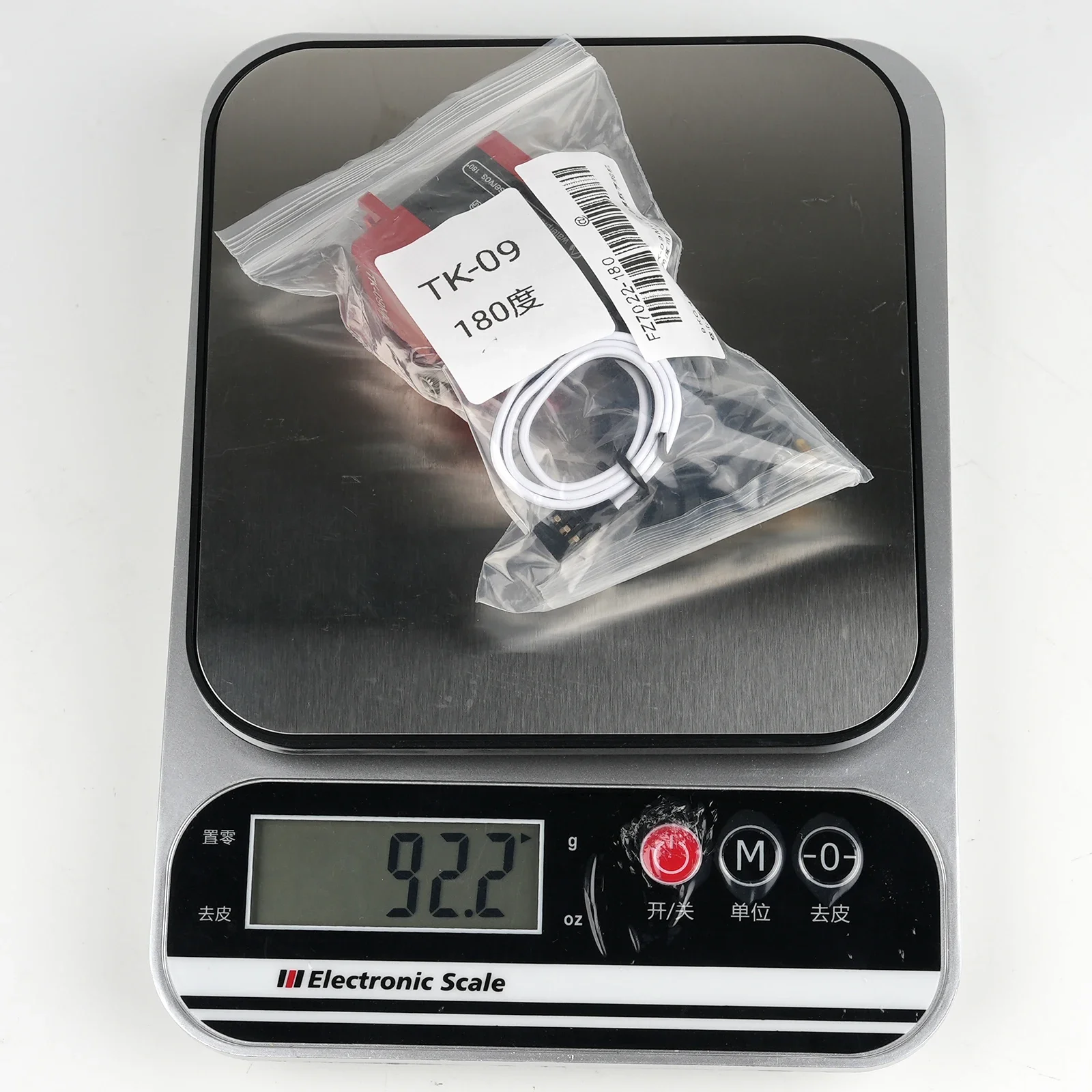

Weight:80g±5%
Gear type 5 Metal
Limit angle:360°
Bearing:2BB
Horn gear spline:25T 5.9mm*4.0mm

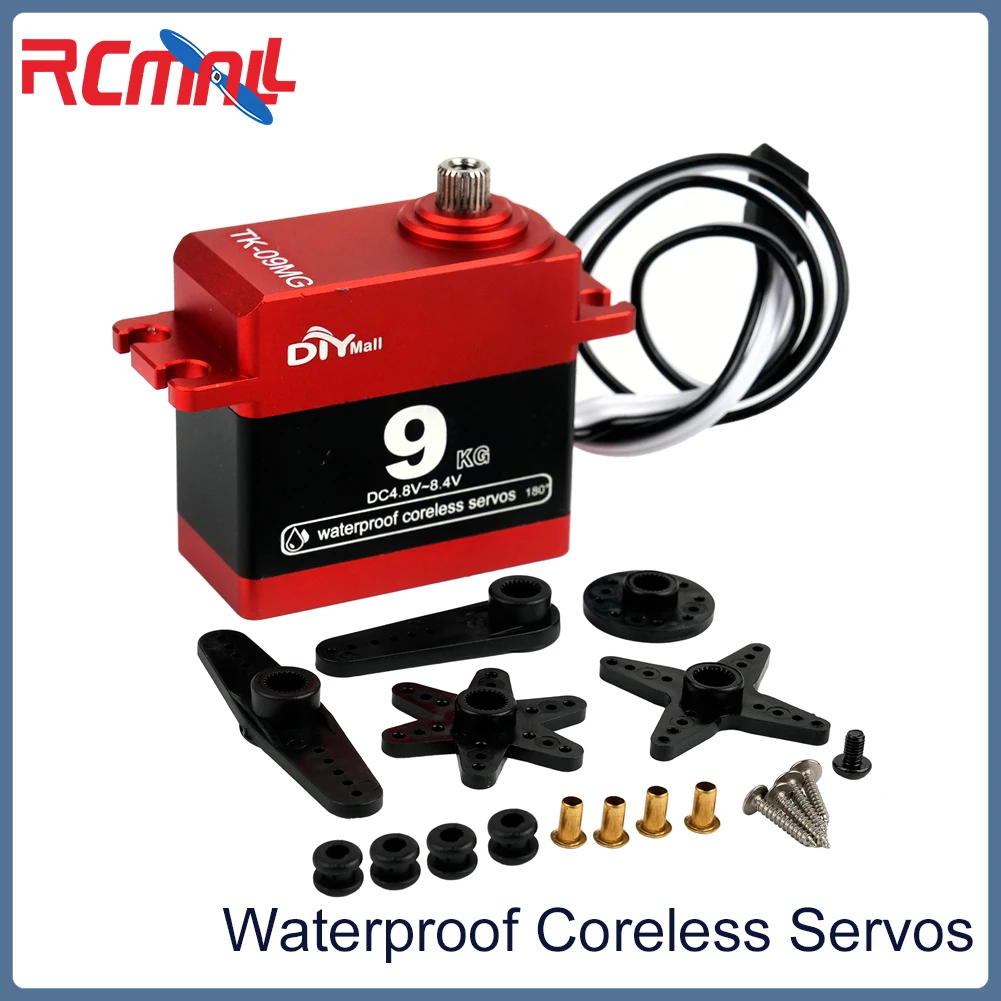

Horn type Plastic, POM
Case:All-aluminum shell
Connector wire:320mm±5mm
Motor:centerless
Splash water resistance:yes
4.Electrical Specification
Operat voltage:4.8V 8.4V
Idle current:mA mA
No load speed:0.09sec/60° 0.07sec/60°
Runnig current:480mA 770mA
Peak stall torque:4.8kg.cm 8.6kg.cm
Stall current:1700mA±10% 2790mA±10%
Working voltage range:4.8-8.4V
5.Control Specification
Item:Specifcation
Command signal:Pulse width modification
Amplifier type:Digital controller
Pulse width range:500～2500usec
Neutral position:1500usec
Running degree:180°±3°(when 500～2500usec)
Dead band width:3 usec
Rotating direction:Counterclockwise (when 1000～2000usec)
