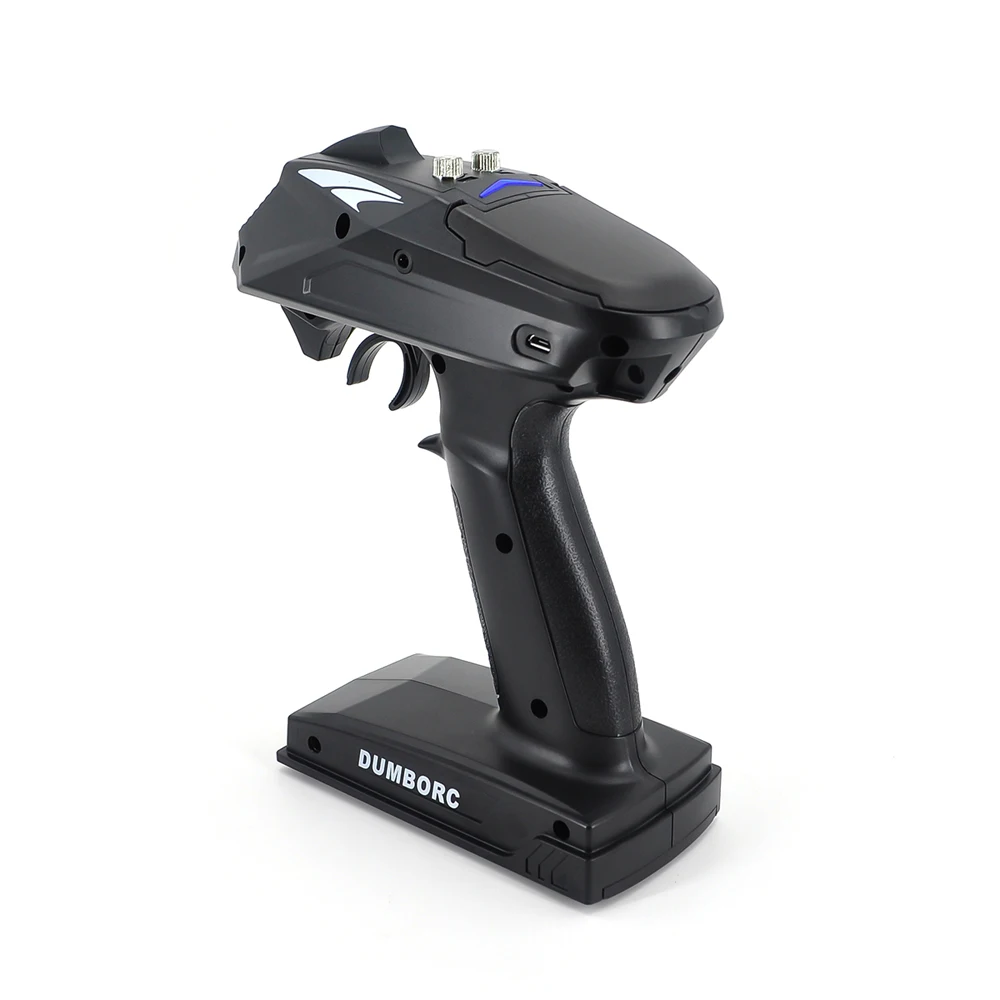

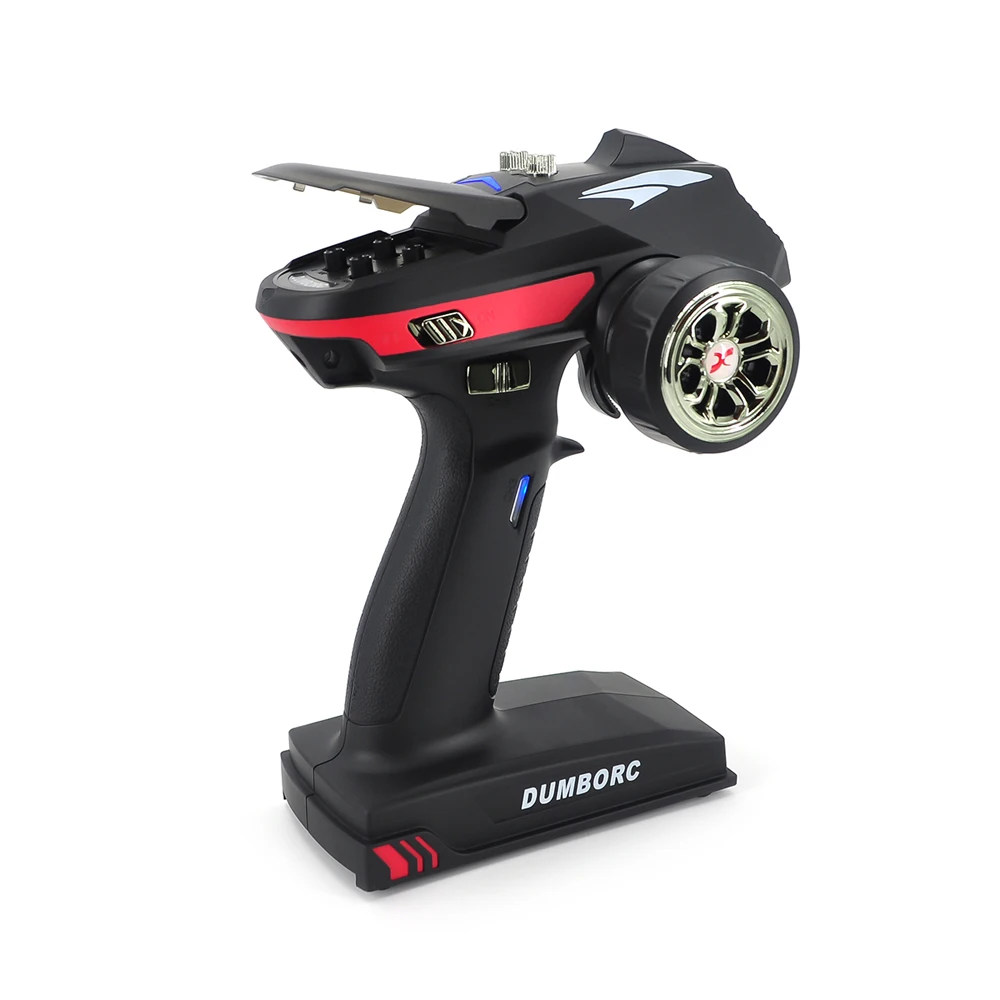

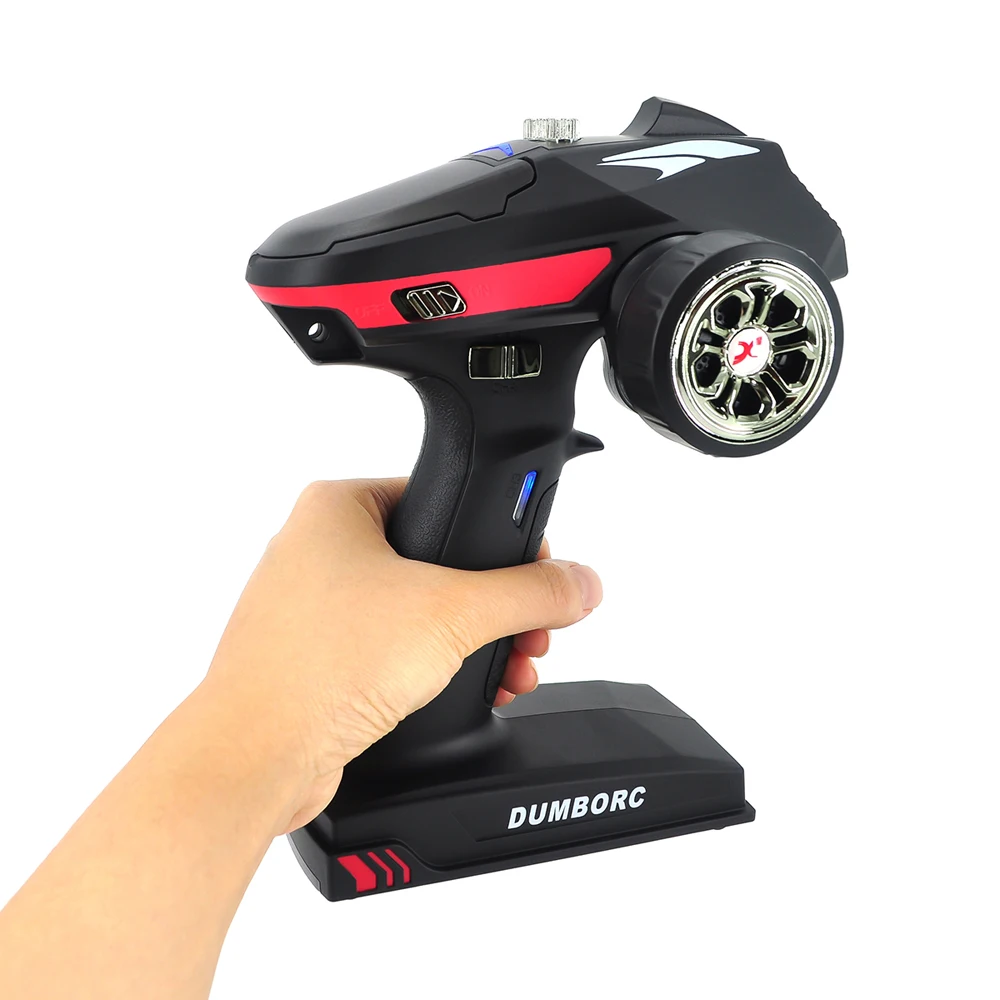

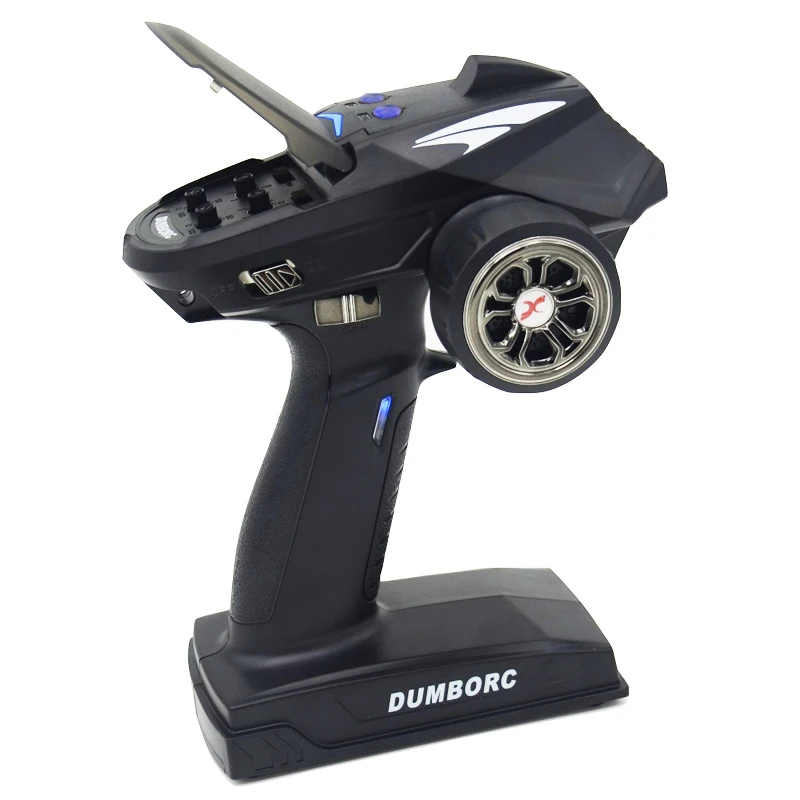

RC X6 X4 X6P 2.4G 6CH Transmitter w/ X6FG Gyro LED Light Set X6F Receiver for 1/10 1/8 Crawler Axial SCX10 D90 RC Car Boat
Crafted with love and care at our own factory
-
Estimated Delivery:Dec 28 - Jan 01
-
Free Shipping & Returns: On all orders over -
Item Brand:DumboRC
Item Number:X6/x4(transmitter),X6F/X6FG(receiver)
Item Name:Transmitter
Material:Plastic and metal

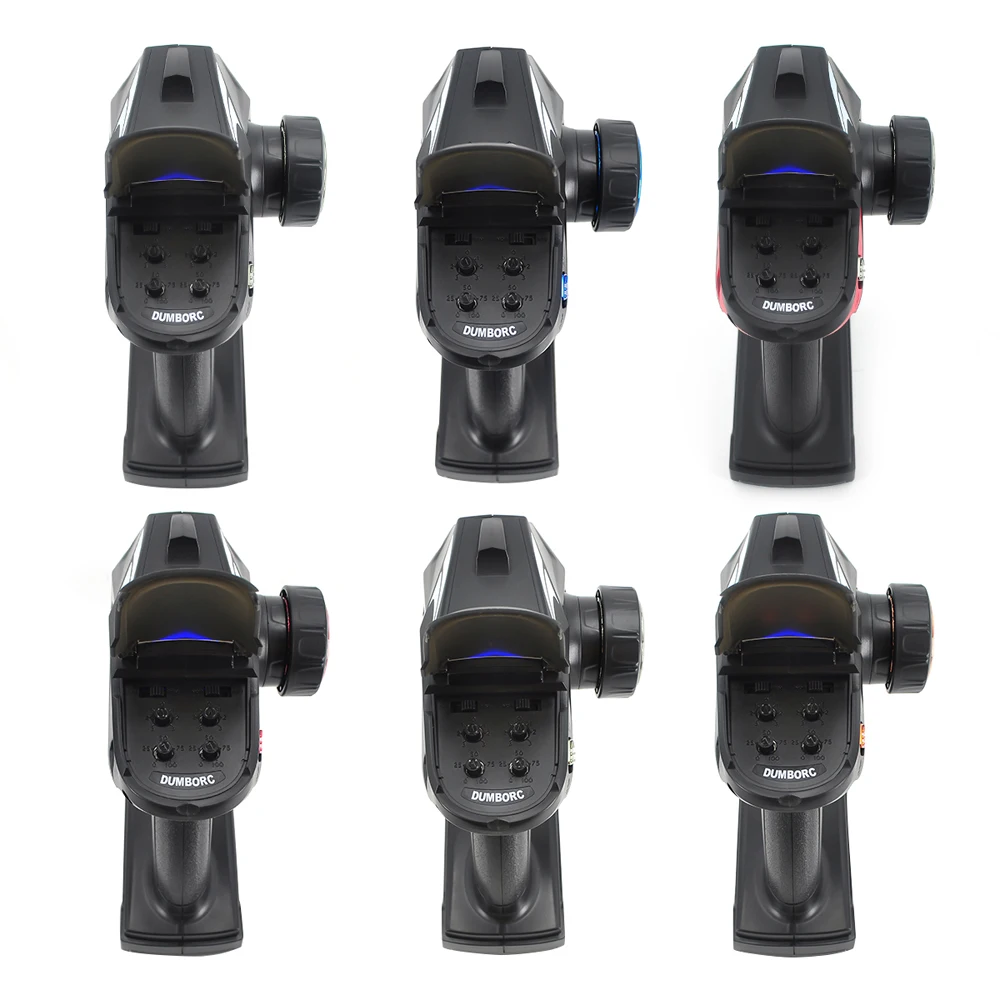

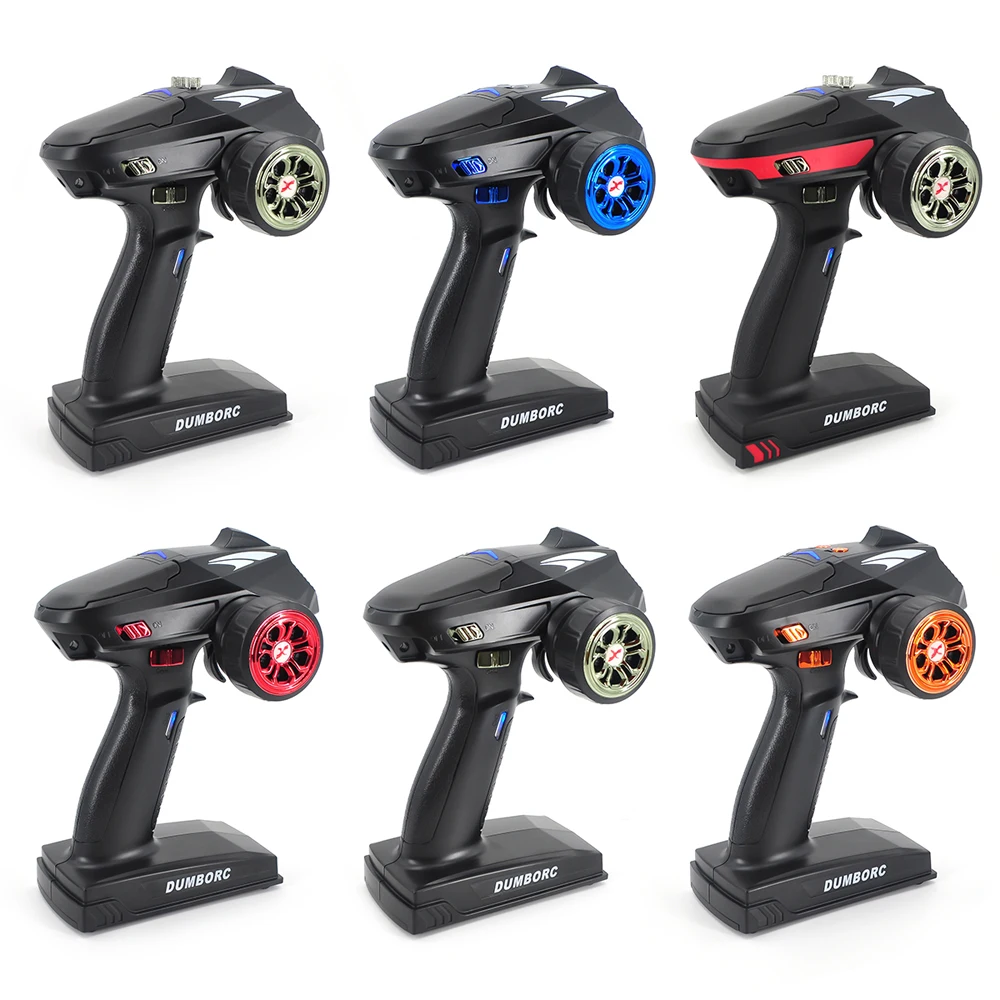

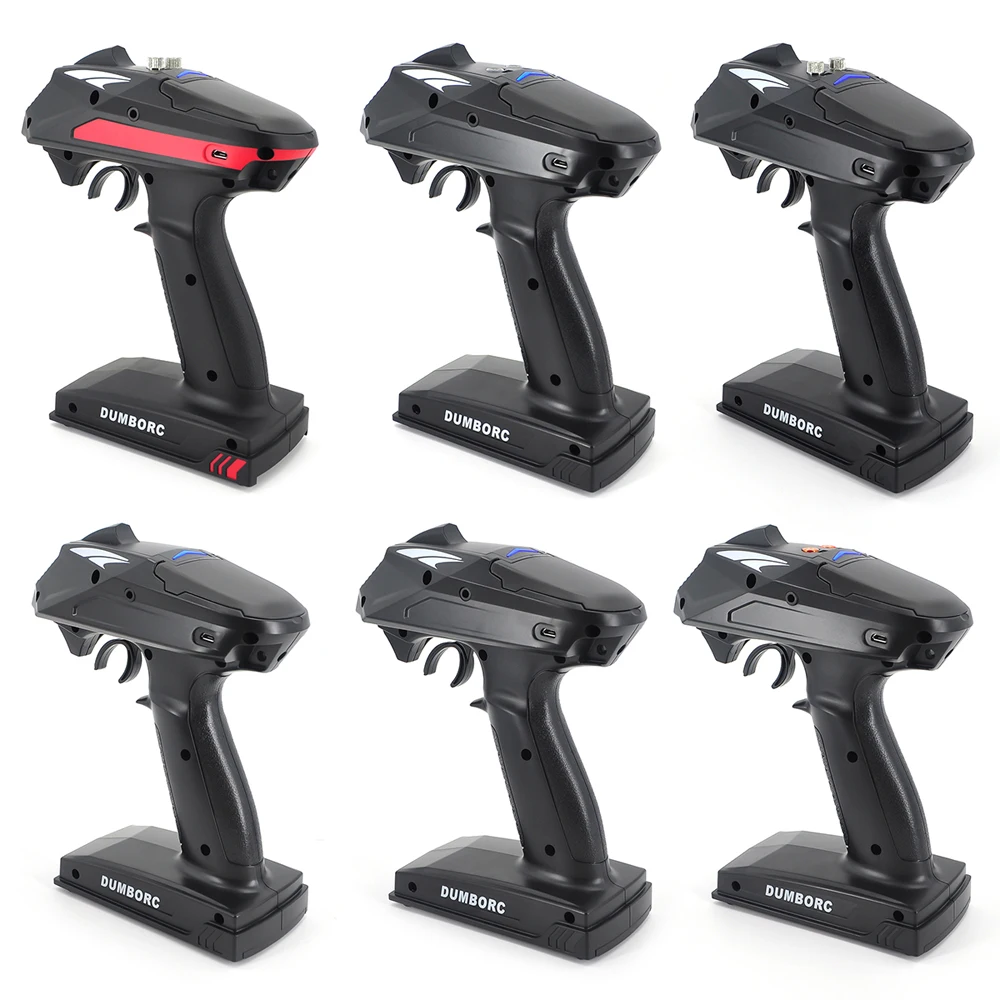

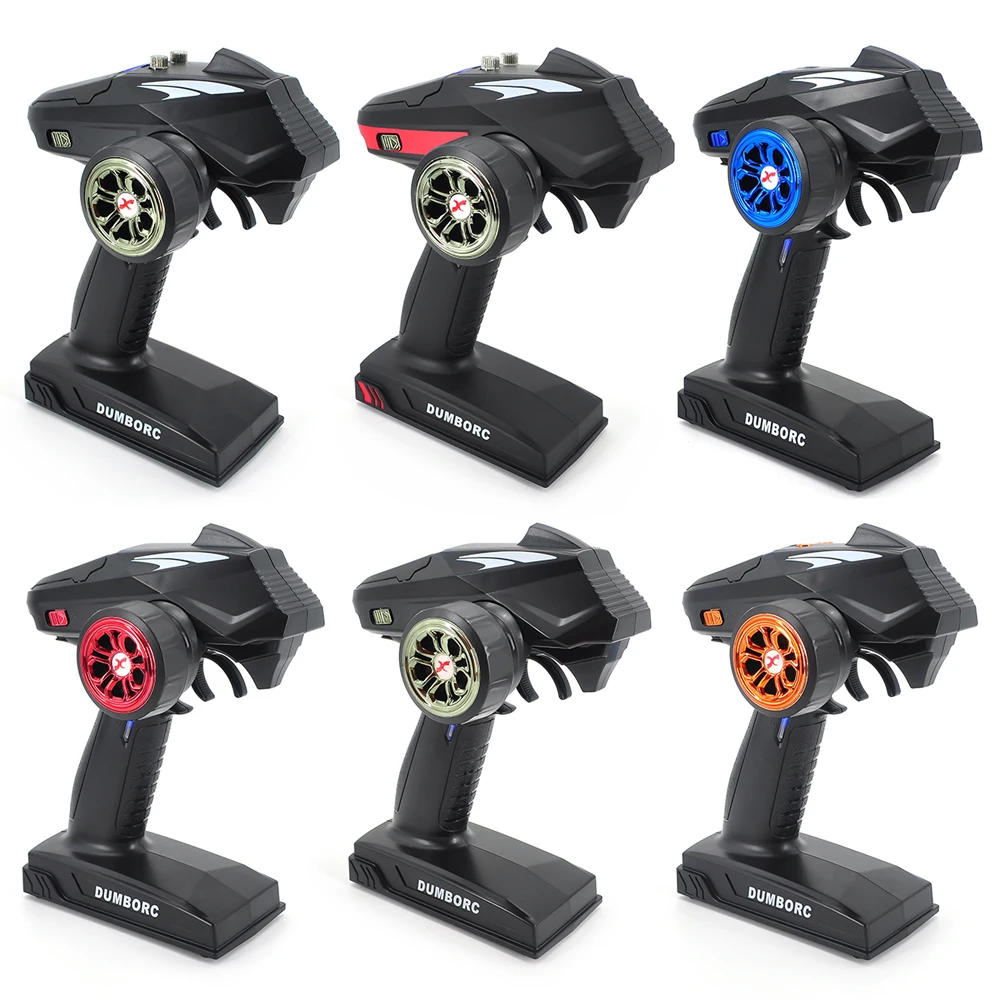

Color:Blue, Sliver(send randomly)
Product Size:160*100*205mm
Receiver Size:35*20*13mm
Battery:4X AA(not included)
Specification:
Channel:6CH
Fit For:Rc Car Boat Tank Model,such as jjrc q65,mn-90 and so on
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Control Distance: 400-500 meters
Remote Control Voltage Range: 4.8-12v
Remote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
RF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4v 4.8v
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)

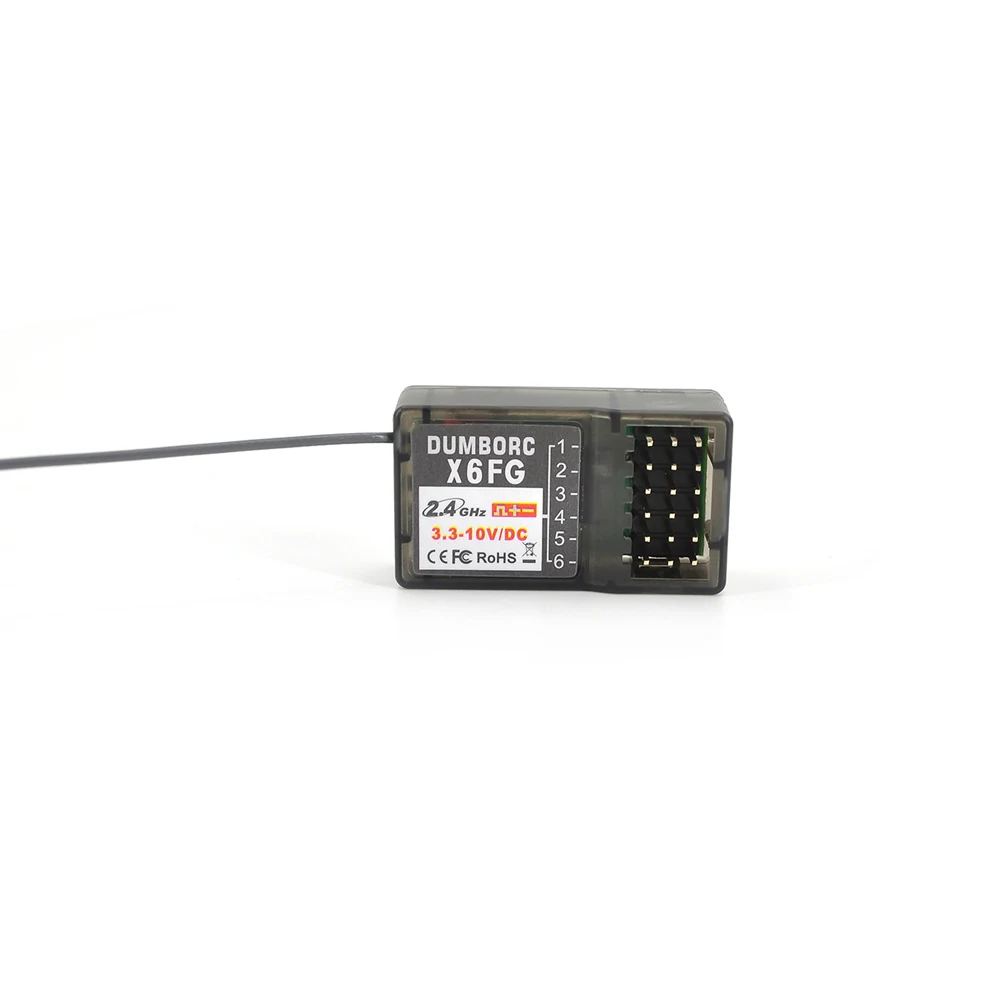

Support Receiver: X6F/X6FG
Note: X6F receive without Gyro function.
X4 Description:
Item Brand:DumboRC
Item Number:X4(transmitter),X6F(receiver)
Item Name:Transmitter
Material:Plastic and metal
Color:Blue and gold
Product Size:160*100*205mm
Receiver Size:35*20*13mm
Battery:4X AA(not included)
X4 Specification:
Channel:4CH
Fit For:Rc Car Boat Tank Model,such as JJRC Q65, WPL and so on
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Control Distance: 400-500 meters
Remote Control Voltage Range: 4.8-12v
Remote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
RF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4v 4.8v
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Support Receiver: X6F/X6FG
Item Number:X5(transmitter),X6F(receiver)
Item Name:Transmitter
Material:Plastic and metal
Color:Black
Product Size:160*100*205mm
Receiver Size:35*20*13mm
Battery:4X AA(not included)
X6P Specification:

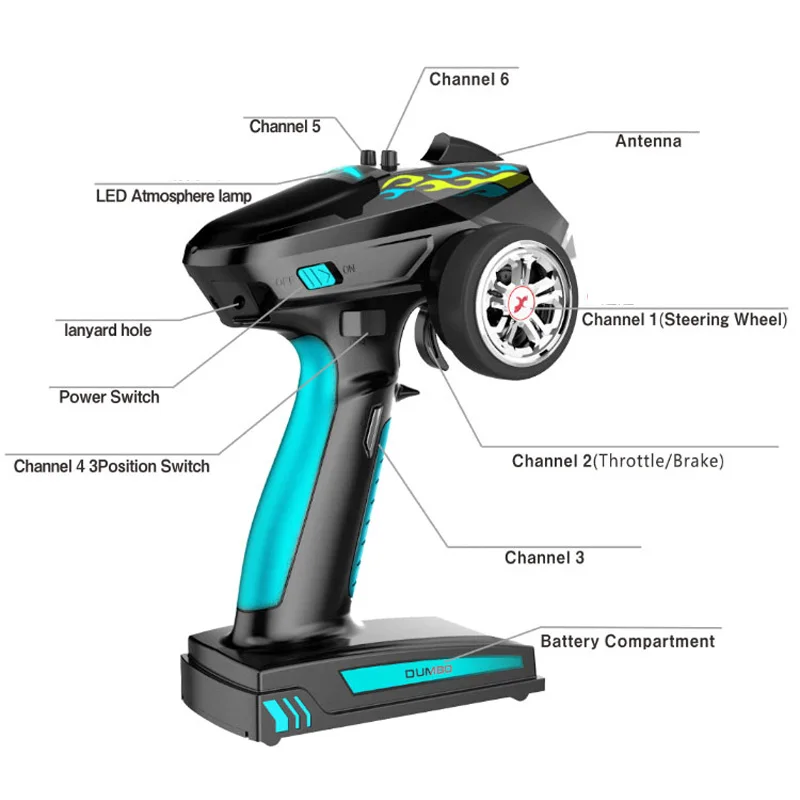

X6P is different from our X4 and X6. Its CH5 and CH6 are push-button. When you press CH5, the rudder will turn to the left. When you press it again, it will return to the center. At the same time, an LED light will tell you if it has been activated by pressing. When pressing CH6 in the same way, the other rudder will turn right, and there is also an LED indicator.

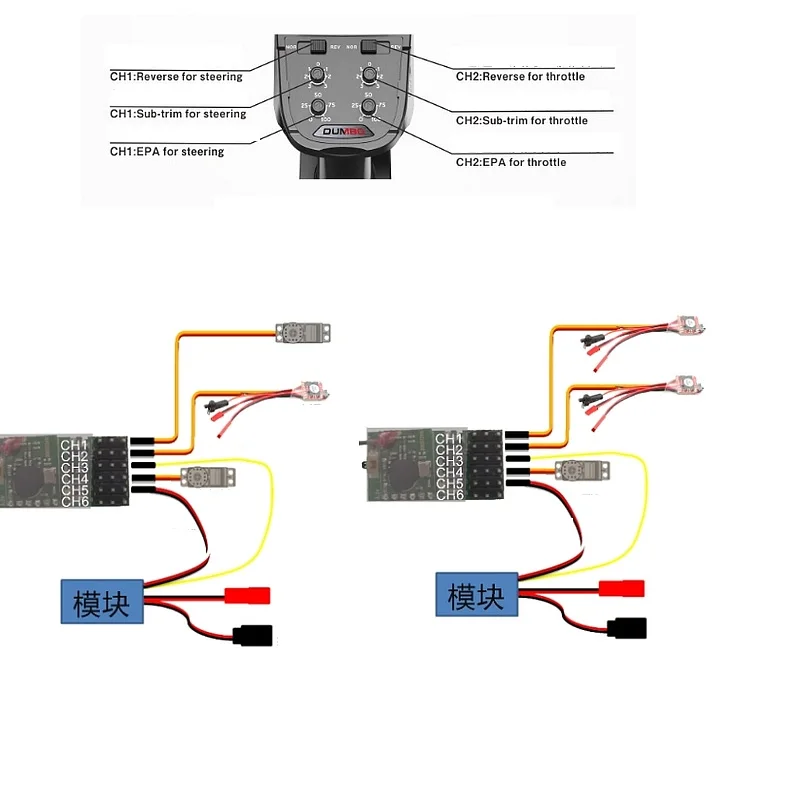

This receiver integrates the lamp group, which is equivalent to making the lamp group and the receiver together, so the wiring is very simple, and there is no need to use many Y wires to connect to the receiver.
Item Number:X6P
Item Name:Transmitter
Material:Plastic and metal
Color: Black
Product Size:160*100*205mm
Receiver Size:35*20*13mm
Battery:4X AA(not included)
Channel:6CH
Fit For:Rc Car Boat Tank Model,such as JJRC Q65
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Control Distance: 400-500 meters
Remote Control Voltage Range: 4.8-12v
Remote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
RF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4v 4.8v
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Support Receiver: X6F/X6FG
Battery Parameter: 7.4V 1000mAh 2S Transmitter Lipo Battery
Capacity: 1000mAh
Size: 55x30x4mm
Plug: JST Plug
Continuous Discharge Rate:13C
Weight: 45g
Colors: Standard Colors
Suitable for: DumboRC X4 X6 X5 X6A X6B Transmitter TX Remote Control
Package included:
1X Transmitter(X6 or X4, choose from description)
1X Receiver(X6FG or X6F, choose from description)
1X LED Light Set(optional)
1X 7.4V 1000mAh 2S Transmitter Lipo Battery (optional)
1X Manual
