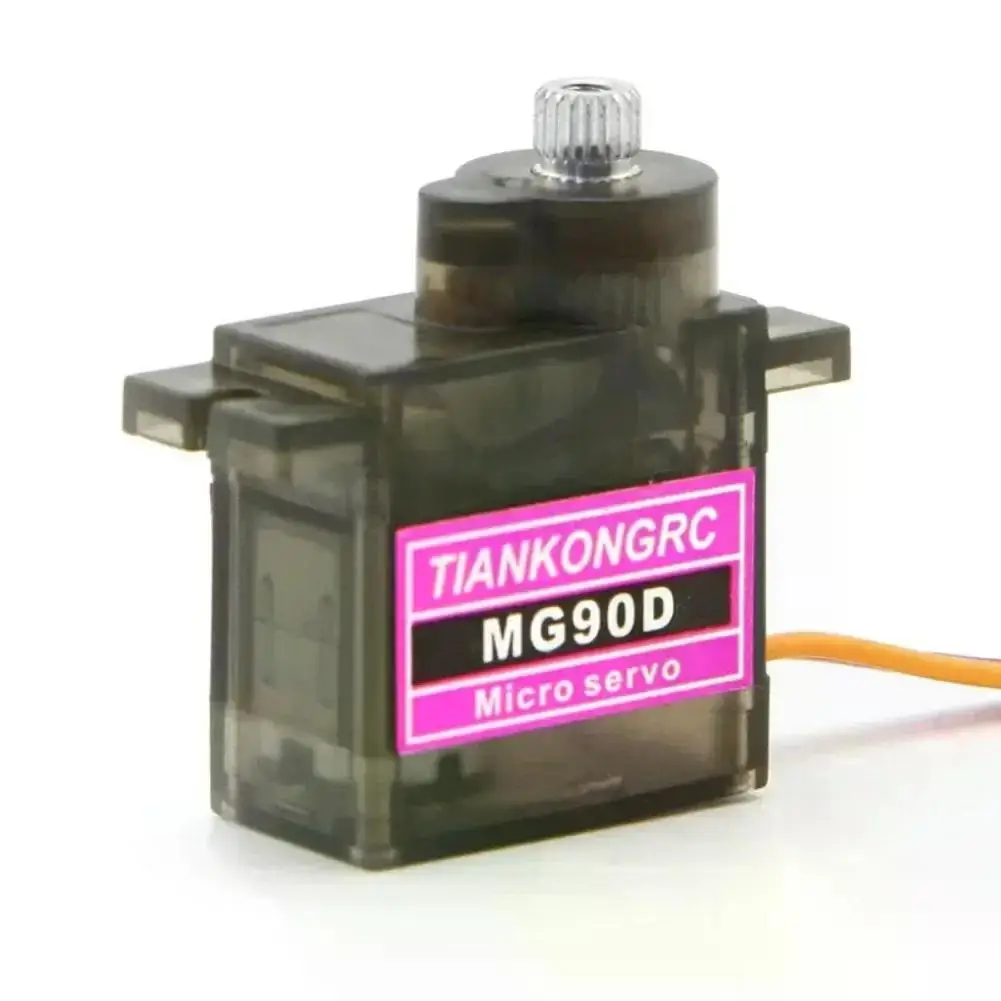

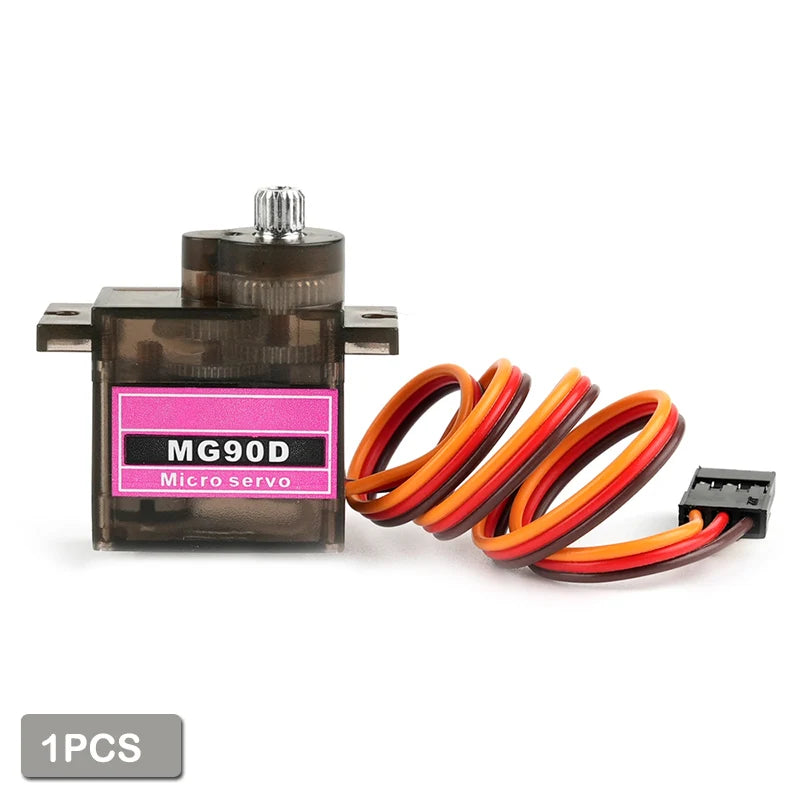

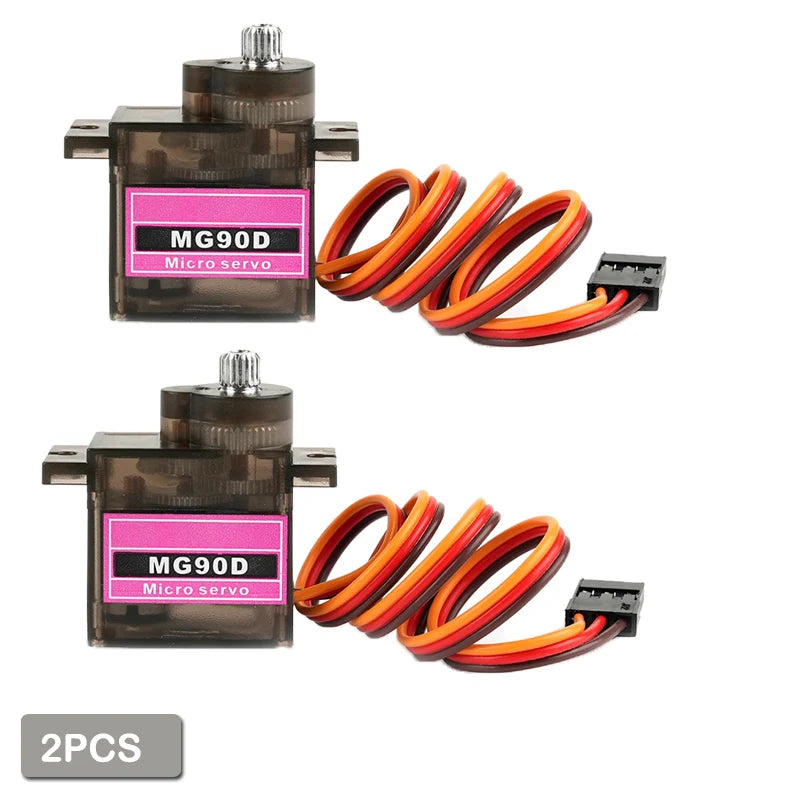

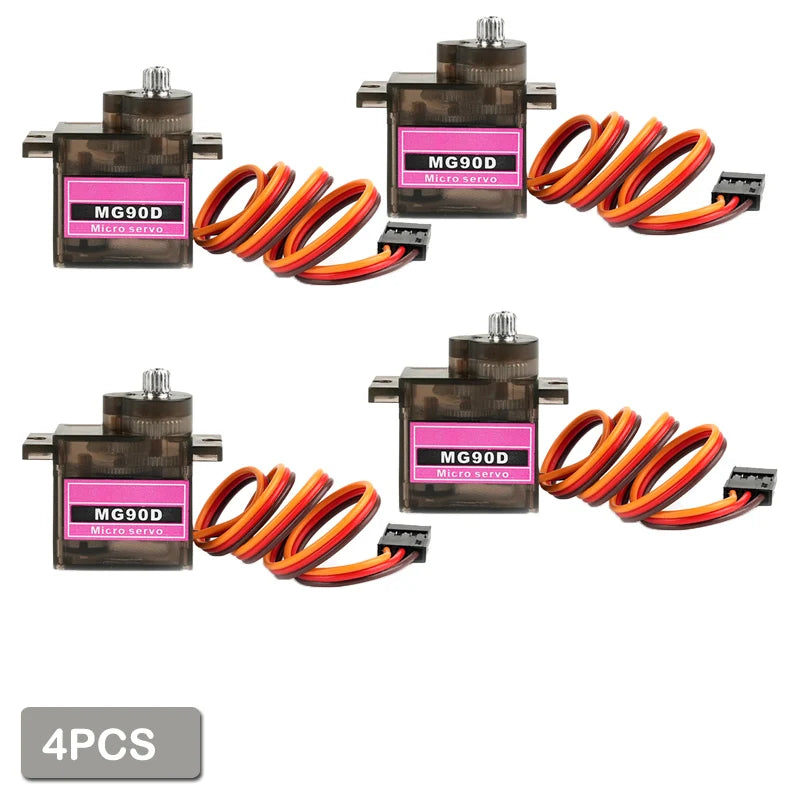

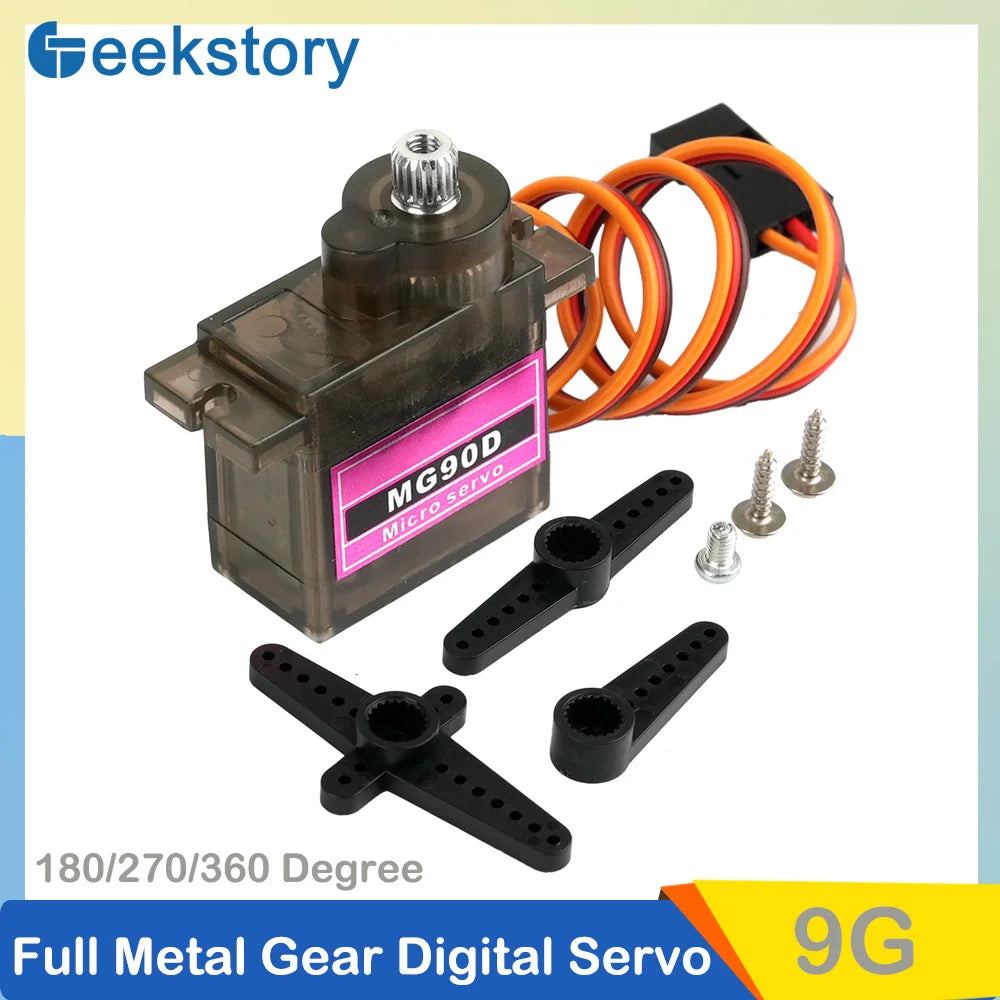

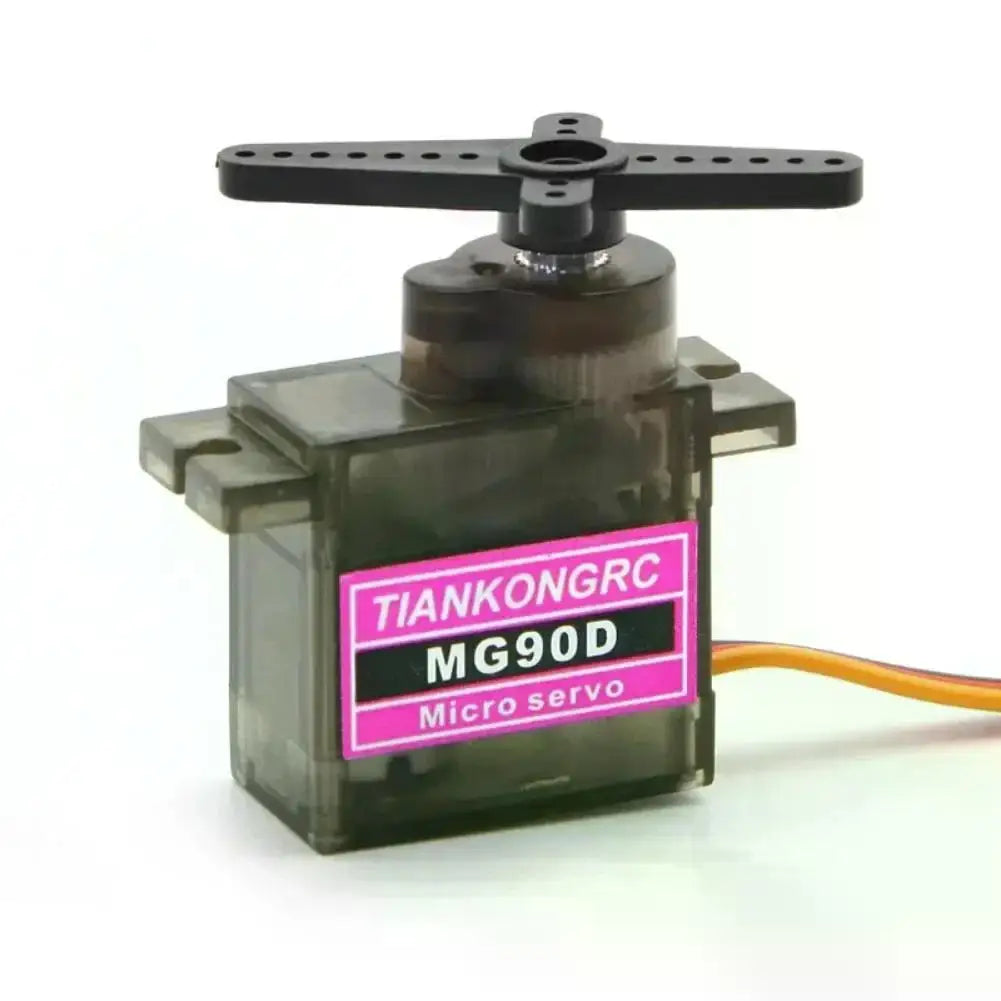

9g Micro Digital Servo MG90D Metal Gear 4.8V-6.0V Brush Motor For MOC Bricks RC Plane Helicopter Airplane 450 Drone Toys Parts
Crafted with love and care at our own factory
-
Estimated Delivery:Feb 26 - Mar 02
-
Free Shipping & Returns: On all orders over -
9g Micro Servo 2.0kg.cm High Torque Bearing Upgrad MG90S 4.8V-6.0V Brush Motor For RC Plane Helicopter Airplane 450 Drone Toys Parts
Item Specifcation
Size : 22.4*12.1*22.8mm
Weight : 13.5g

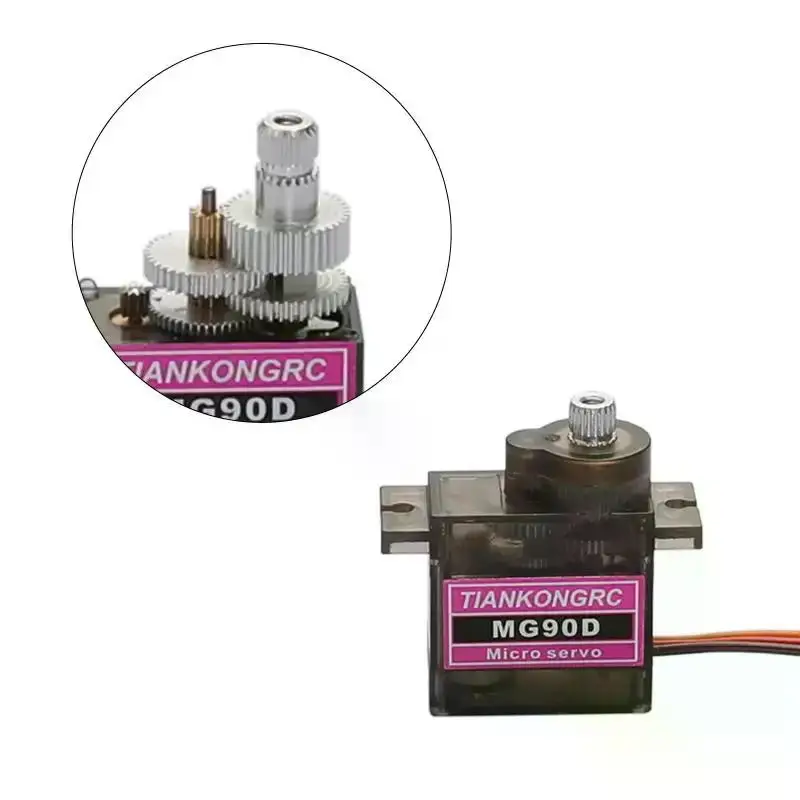

Gear type: Metal
Limit angle 2005
Bearing NO
Horn gear spline : 20T 4.9mm

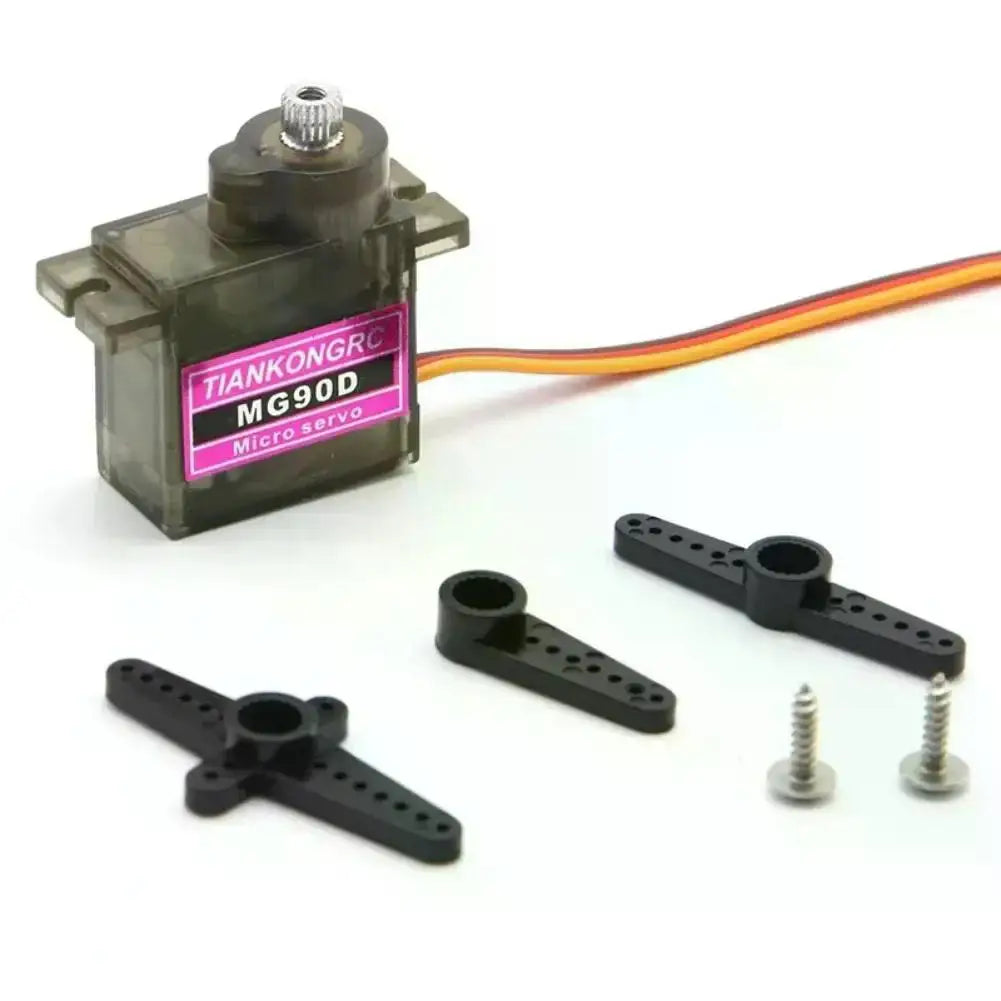

Horn type : Plastic, POM
Case : Engineering plastics(PBT)

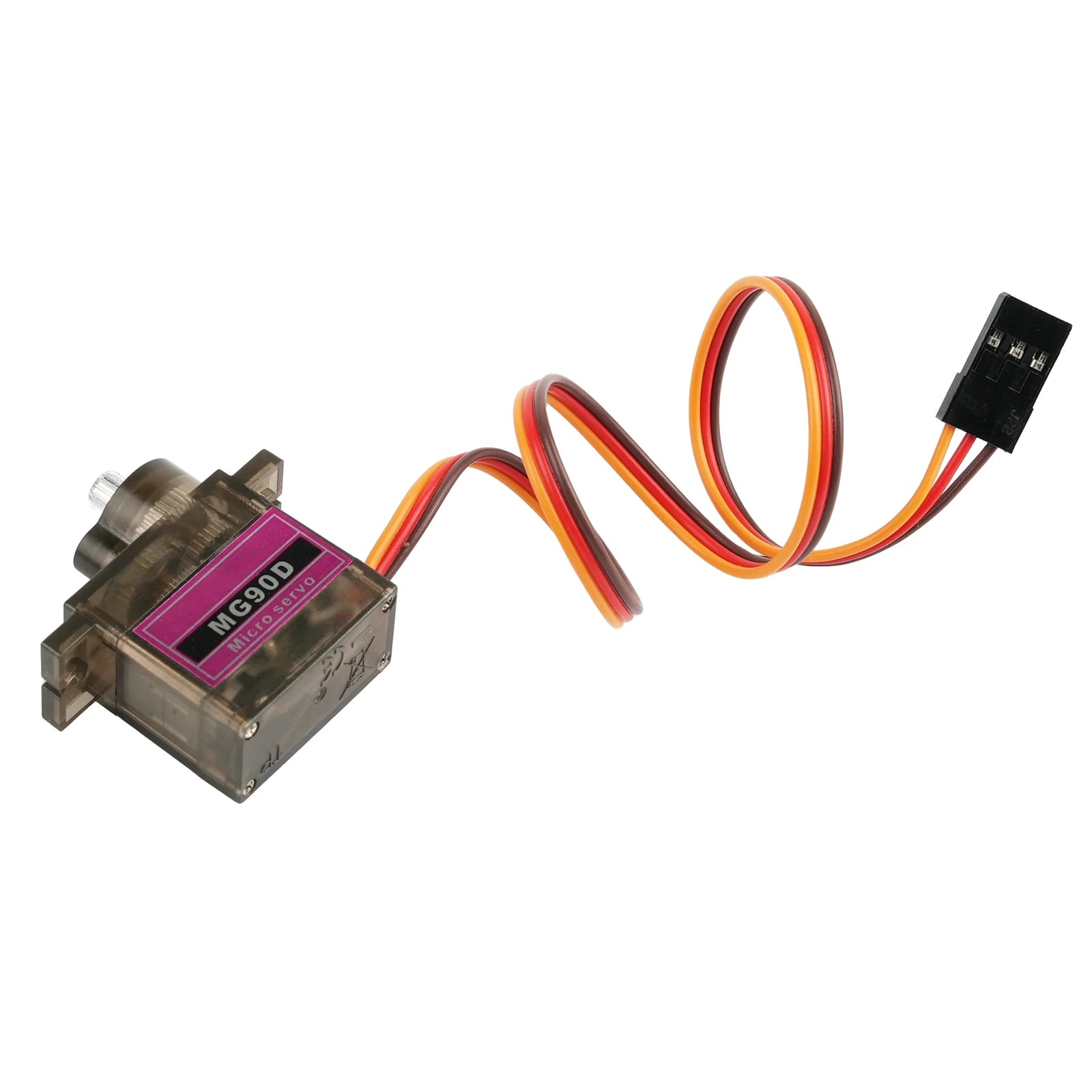

Connector wire : 250mm 5mm
Motor : Carbon brush motor
Splash water resistance : No
Operat voltage 4.8V 6.0V
No load speed 0.12sec/60 0.09sec/60
Peak stall torque 1.8kg.cm 2.0kg.cm
Stall current 750mA ± 10% 860mA ± 10%
Command signal Pulse width modification
Amplifier type : Analog controller
Pulse width range :500-2500usec
Neutral position :1500usec
Dead band width 8 usec
