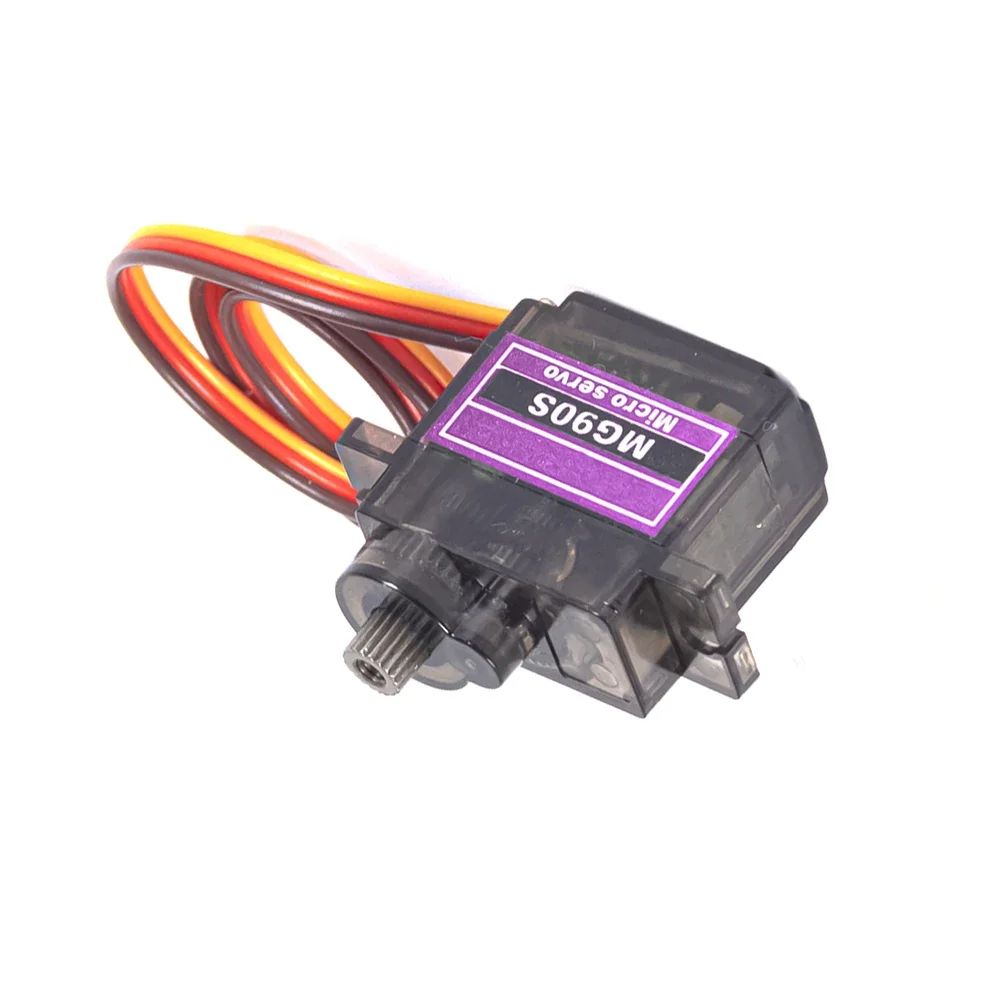

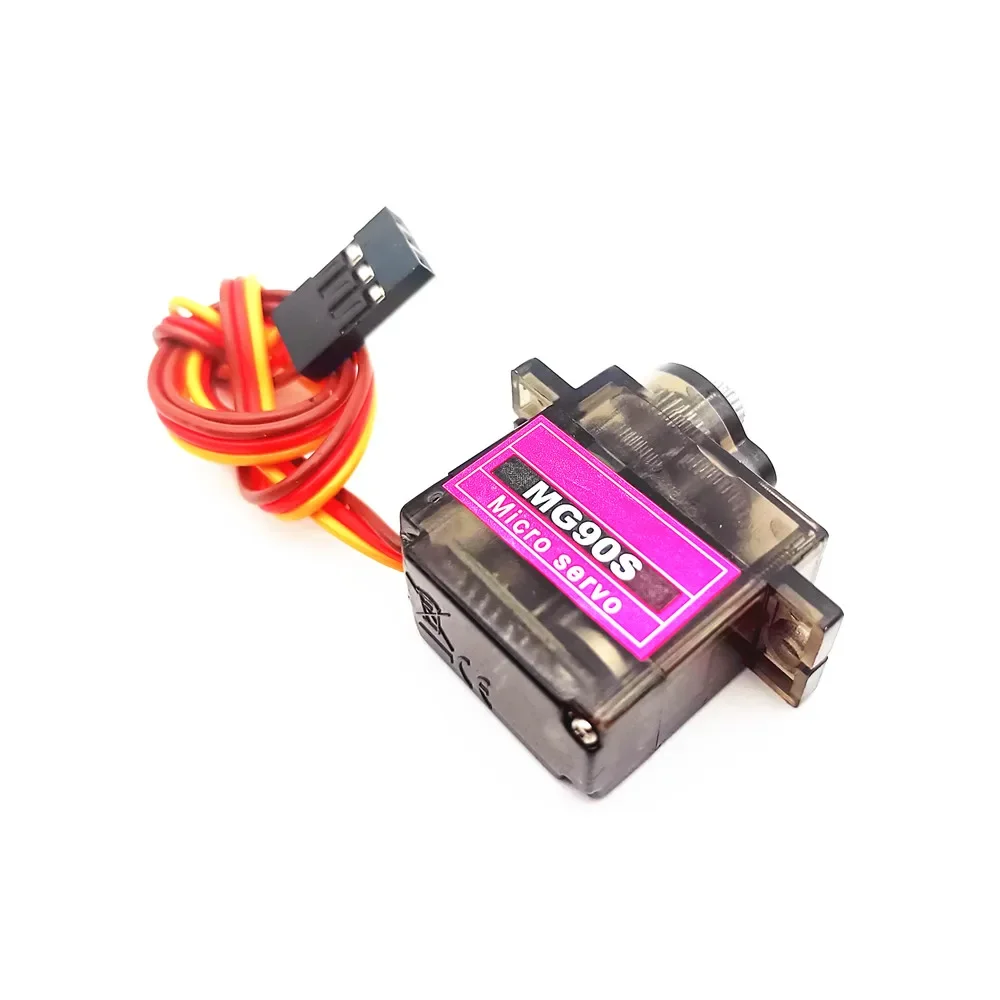

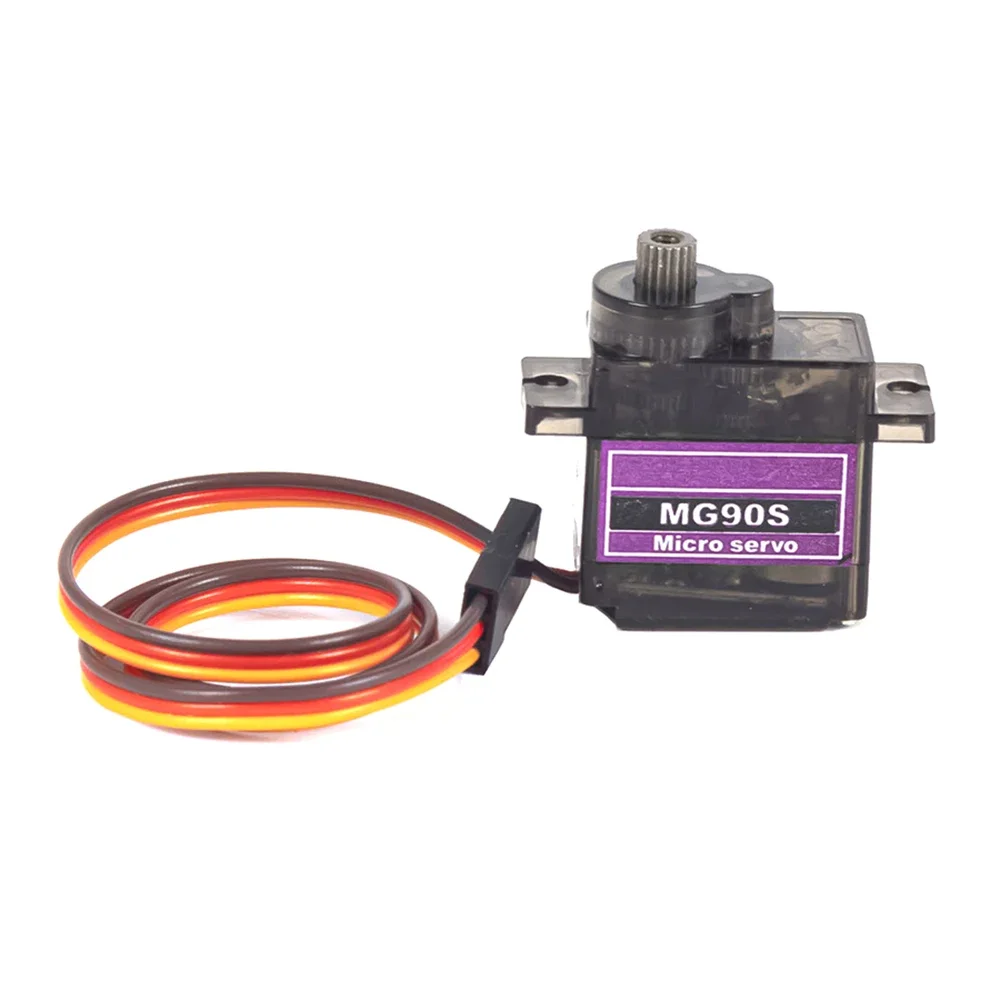

2/4/10/20/50Pcs MG90S Servo All Metal Gear 9g 180 360 SG90 Upgraded Version For Helicopter Plane Boat Car MG90 Trex 450 RC Robot
Crafted with love and care at our own factory
Regular price
$31.00
Sale price
$31.00
Regular price
Unit price
Sale
-
Estimated Delivery:Feb 26 - Mar 02
-
Free Shipping & Returns: On all orders over -
Feature
Full Ball Bearing
Light Weight
Less Noise
Connector Wire Length 250mm
Products Description:
For: Mini Car / Mini Ship / Helicopter & Airplane
Model: MG90S SG90 upgraded version
Weight: 12G
Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree
Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm
Voltage: 4.8V6.0V
Connector Wire Length 250mm
Dimension: 22.6mm x 12.1mm x 22.5mm
Dead Band Width: 5 usec
Interface Specifications: JR / FP General
Gear Material: All metal
Accessories: Multi-arm, fixing screws
Scope: Helicopters KT, fluttering, gliding, small robots, and other models
Recommend Model: Mini Car / Mini Ship / Helicopter & Airplane
Note:
Servo all metal means spindle and gearwheel all is iron made
Attention：
If you are using RC car, ship,drones, and steering control, please choose a 180 degree servo.
360 degrees are continuous rotations and can only adjust speed, not angle.
The difference between 180 degrees and 360 degrees:180 degree servo can control the angle360 degree servo can only control forward, reverse, and speed
Driver logic:
180 degrees:
T=0.5ms ---- Rotate 0 。
T=1.0ms ---- Rotate 45 °
T=1.5ms ---- Rotate 90。
T=2.0ms ---- Rotate 135
T=2.5ms ---- Rotate 180。
360 degrees:
T=0.5ms ---- Maximum forward rotation speed;
T=1.5ms ---- No rotation;
T=2.5ms ----Maximum reverse speed
Package included
2/4/10/20 * MG90S All metal Mini Micro Servo
